With profiles of 7 axes, speed of advancement of up to 120m/min, rotation of each axis of 7,200 rpm, useful width of the table of 230mm, for automatic production of frames and structural pieces of wood.

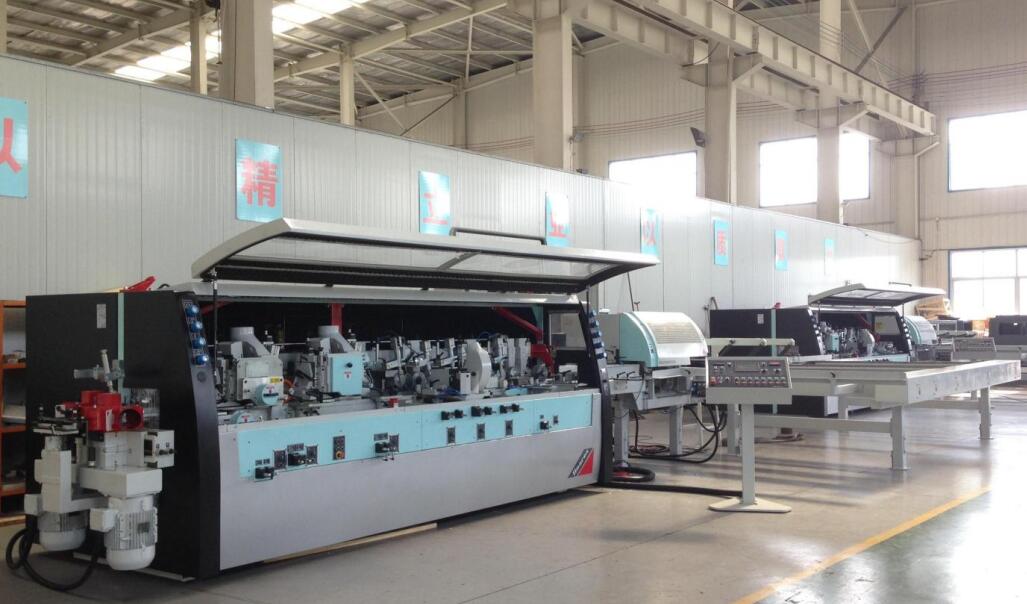

Hector DL-7007

Min-max working width (with hta of Ø140mm) 20-230 mm

Min-max working height (with hta. of Ø140mm) 6-125 mm

Number of spindles min-max 4-10

Spindle rotation speed 6000 rpm

Min-max orbit of horizontal axes

(excl. 1st horiz inf Ø180mm) 125-250 mm

Min-max orbit of vertical spindles 125-250 mm

Diameter of tempered spindles 50 mm

Electronically variable feed speed 9-120 m/min

Diameter of the feed rollers 160 mm

Maximum pneumatic pressure in drag rolls 6 bar

Axial motion range of horizontal axes 22 mm

Axial range of motion for vertical axes 30 mm

Entrance table length 966 mm

Optional

Max Working Width up to 300mm

Repowering of motors on horizontal axes (up to 40 HP)

Advance roll extender

Miscellaneous voltages

Working height 125 mm

Hydrocentrating tools

Measuring device of htas.

Splitter

Universal
