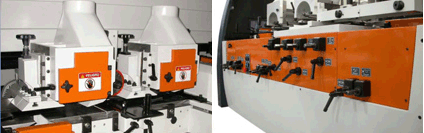

DL Series Four Side Moulder Technical Specification
Max. Width finished stock (tool diameter 140mm): 230mm
Min. Height finished sotck (tool diameter 200mm): 125mm
Min. /Max number of spindles: 5-10
Spindle rotation speed6000 rpm;8000rpm optional.
Min. Cutting circle (vertical): 110-200 mm
Feed speed range - electronically variable: 5-60 m/min
Adjustment range for bed plate and guide: 10mm

Axial movement for horizontal spindles: 22mm
Feed rolls diameter: 140mm
Max. Pneumatic pressure: 6bar
Entrance table length: 2m
Min. Stock length (with grooved bed plate): 228mm;

Cardan drive system
Receding chipbreaker in front of top spidle
Upper and lower driven feed rolls at the entrance
Bed plates exchangeable and adjustable to tool
Central panel with contactors thermics protections
Automatic oil pump
Full sound and safety enclosure
