Product name : Curve Surface Sanding Machine
Item : 3DS110
Price : 30,000+
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
 Curve surface and 3-dimension sander 3DS110;
MAX WORKING WIDTH  1100mm;

MAx WORKING THICKNESS 100mm;

CROSS SANDING ROLLERS ROTATING SPEED Ma×550rpm(INVERTER)

SANDING DISCS ROTATING SPEED Ma×500rpmINVERTER);

HORIZONTAL SANDING ROLLERS ROTATING SPEED Ma×550rpm(INVERTER)

CROSS SANDING ROLLERS OSCILLATING FREQUENCY Ma×30 times /min;

SANDING DISCS OSCILLATING REQUENCY ma×30 times/min;

HORIZONTAL SANDING ROLLERS OSCILLATING FREQUECY 60 times /min;

FEEDING SPEED 0-19m/minINVERTER

CROSS SANDING ROLLER DIAMETER  Φ320mm8PCS

ABRSAIVE STRIPS QUANTITY ON EACH CROSS SANDING ROLLER 20 PCS

SANDING DISCS DIAMETER Φ180mm22 PCS

ABRASIVE STIPES QUANTITY ON EACH SANDING DISC 10PCS

HORIZONTAL SANDING ROLLER DIAMETER  Φ320mm2 PCS

ABRASIVE STRIPS QUANTITY ON EACH HORIZONTAL SANDING ROLLER 20 PCS ;

TOTAL MOTOR POWER  24.23kw


FEEDING MOTOR POWER  4kw

CROSS SANDING ROLLERS MOTOR POWER 1.5kw

CROSS SANDING ROLLERS OSCILLATING MOTOR POWER 0.75kw

HORIZONTAL SANDING ROLLERS MOTOR POWER 1.5kw(2 PCS)

HORIZONTAL SANDING ROLLERS OSCILLATING MOTOR POWER  0.37kw

SANDING DISCS ROTATING MOTOR POWER 1.5kw2 PCS

SANDING DISCS OSCILLATING MOTOR POWER 0.75kw(2 PCS)

CENTER FRAME RISE AND DECLINE MOTOR POWER 1.5kw

VACUUM PUMP MOTOR POWER  7.5kw

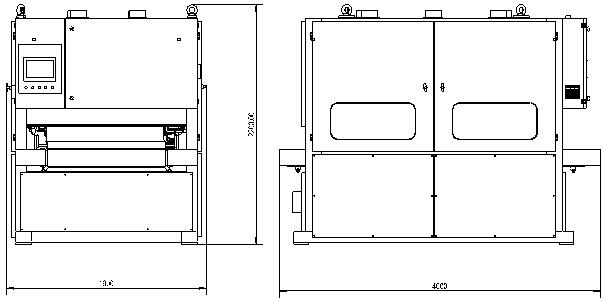

OVERALL DIMENSION 4000×1900×2200mm
