| Linares Four Side Moulder |

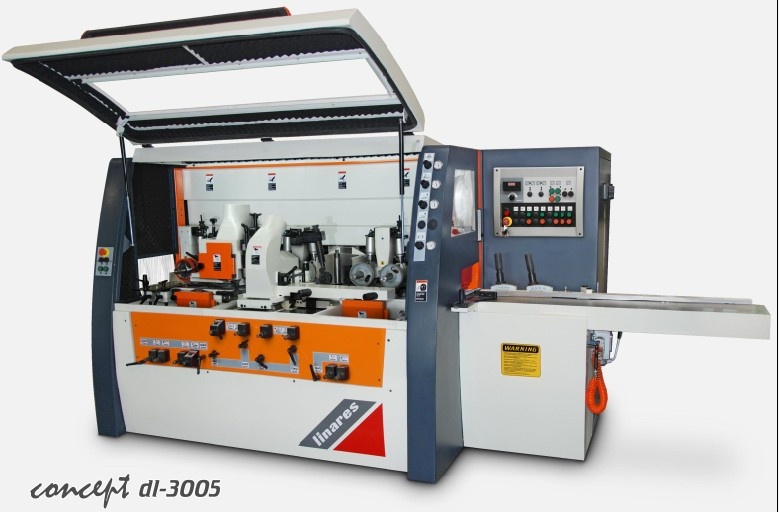

DL3005 |

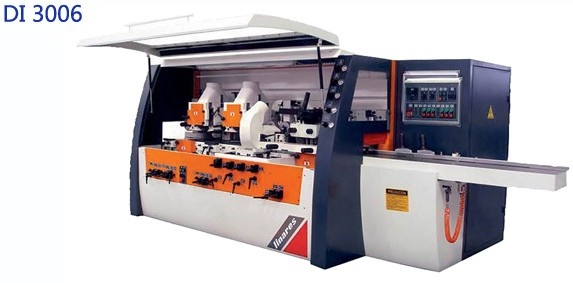

DL3006 |
DL3007 |
| Working wood block width |
20-230mm |
20-230mm |
20-230mm |
| Spindle number |
5 |
6 |
7 |
| Working wood block thIckness |
6-150mm |
6-150mm |
6-150mm |
| Spindle rotation speed |
6000rpm (8000rpm optional) |
6000rpm (8000rpm optional) |
6000rpm (8000rpm optional) |
| Cutter head spindle dia. |
40mm(50mm optional) |
40mm(50mm optional) |
40mm(50mm optional) |
| Feeding wood block speed |
5-35m/min |
5-35m/min |
5-35m/min |
| Feed table&guide rail adjustable |
10mm |
10mm |
10mm |
| Horizontal/Vertical spindle adjustalbe |
22mm |
22mm |
22mm |
| Feed table standard length |
2000mm |
2000mm |
1200mm |
| Minimum working wood block length |
228mm |
228mm |
228mm |
| Max working air pressure |
6 Mpa |
6 Mpa |
6 Mpa |
| 1st bottom horizontal motor power |
5.5kw |
5.5kw |
5.5kw |
| Left side vertical motor power |
5.5kw |
5.5kw |
5.5kw |
| Right side vertical motor power |
5.5kw |
5.5kw |
5.5kw |
| 2nd right vertical motor power |
without |
without |
5.5kw |
| Horizontal top spindle motor power |
7.5kw/10hp |
7.5kw/10hp |
7.5kw/10hp |
| 2nd top horizontal spindle motor power |
without |
7.5kw/10hp |
7.5kw/10hp |
| 2nd bottom horizontal spindle motor power |
5.5kw |
5.5kw |
5.5kw |
| Lifting motor power |
1.5kw/2hp |
1.5kw/2hp |
1.5kw/2hp |
| Feeding wood block motor power |
4kw |
4kw |
4kw |
| Horizontal cutting dia. |
125-200mm |
125-200mm |
125-200mm |
| Vertical cutting dia. |
125-200mm |
125-200mm |
125-200mm |
| Net weight |
3800kg |
4200kg |
4400kg |
