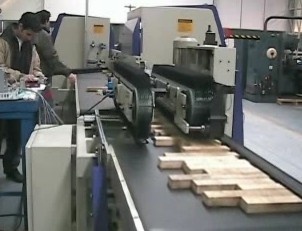

Product name : High Production Capacity Jointer Line
Item : FH-900
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
Technical Specification:
Min-max working wood stock length
.............101-900mm
Min-max working wood stock thickness
.............16-50mm
Min-max working wood stock width
.............38-203mm

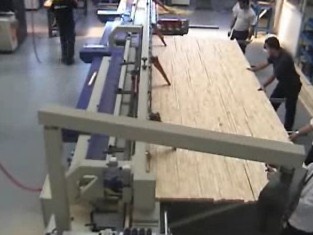

Finshed finger joint board length
.............5.5mm (6.4m-12m optional)
Max capacity
.............180pcs/min
Automatic corner transfer optional.

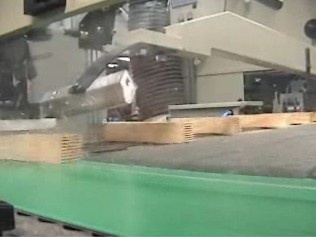

Finger Shaper,Pre-alignment and Pre-pressing Station
Milling spindle diameter.............50mm (46.1mm optional)
Milling spindle rotation speed.................3600rpm
Trim saw diameter..................2x250mm
Trim saw rotation speed.................4650rpm

Scoring saw diameter.....................4x200mm
Scoring saw rotation speed.................5800rpm
Main chain adjustable speed 15-35m/min
Variable frequency drive.
