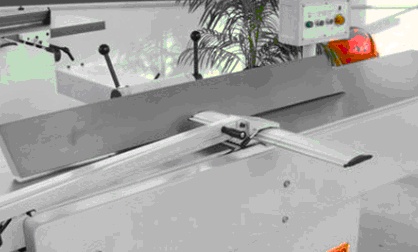

Big cast iron guide fence 0-45 degree tilt.
Cutterblock diameter 120mm,
Spindle rotation speed 5000rpm;
Net weight 820kg.

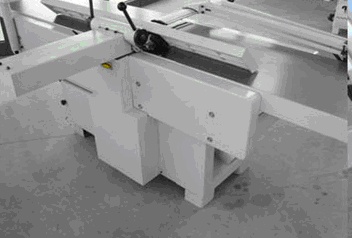

The carpener machine MB505 (or name it SP520 by some Euro customer) jointer is designed with attention to safety, ergonomic features and reliability for woodworking shops looking for a simple, affordable and durable machine.

It has 7.5HP main motor, 2.6 meters length working table,cast iron table to ensure your precision&stability woodworking; and 4 pc of cutterheads.

Working width 520mm(20'') and 410mm(16'') optional;

Commends positioned above working table,easier operation;
